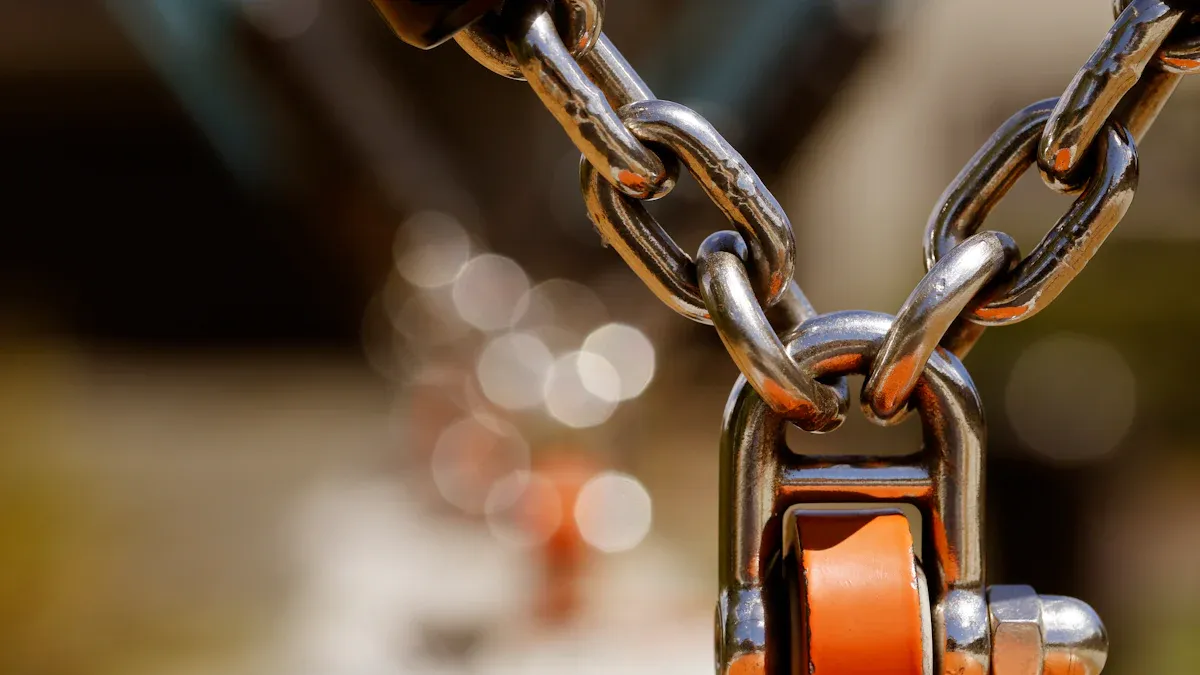

Welded Chain Applications in Agriculture,Construction,and More
Sep 08, 2025|
View:1950
A welded chain features individual metal rods bent into links and fused together, creating a continuous load path. This construction maintains uniform strength throughout the chain due to the added weld.
The chain provides an economical solution for transmitting force or restraining loads.
Its lightweight yet robust design, often using carbon or stainless steel, stands out in industrial and agricultural settings.
Characteristic Welded Chains Non-Welded Chains Strength Withstands serious weight Generally less strong Durability Built for harsh environments May wear out faster Environmental Resistance Resists weather, heat, impact Less resistant to elements
Since the 1930s, welded chains have evolved to meet the demands of agriculture, construction, and material handling, offering reliable performance in challenging environments.
Key Takeaways
Welded chains are strong and durable, making them ideal for heavy-duty applications in agriculture and construction.
Choosing the right chain grade is crucial; higher grades like Grade 80 and Grade 100 support heavier loads and resist wear better.
Regular maintenance and inspection of welded chains and slings enhance safety and extend their service life.
Welded chains excel in harsh environments, resisting corrosion and abrasion, which is essential for outdoor use.
Understanding the specific needs of your operation helps in selecting the most suitable welded chain for efficiency and safety.
Welded Chain Overview
What Is a Welded Chain
A welded chain consists of individual metal links, each formed from high-quality steel rods. Manufacturers cut these rods to precise lengths and bend them into shape. They then weld each link, creating a continuous and strong connection. This process ensures the chain can handle heavy loads and resist harsh conditions.
Note: The choice of materials plays a crucial role. Most welded chains use basic steel or higher carbon-content steel. These materials increase strength, durability, and resistance to wear. Chains made with higher carbon steel also offer a better strength-to-weight ratio.
The manufacturing process involves several key steps:
Material selection: High-quality metals, such as stainless steel or alloy steel, are chosen for their robustness and corrosion resistance.
Forming the links: Metal rods are cut and bent into individual links.
Welding: Each link is welded to form a continuous chain.
Heat treatment: The chain undergoes heat treatment to boost strength and durability.
Finishing touches: The chain is polished, coated, or plated for protection and appearance.
Over the past decade, manufacturers have adopted new technologies to improve welded chain production. They now use coated, high-strength, and thin-gauge materials. Advanced welding techniques, such as friction stir welding and metal-cored wire, have increased efficiency and quality. These innovations help meet the needs of industries that demand reliable and long-lasting chains.
Welded Chain vs. Other Chains
Welded chains stand out from other types due to their superior strength and durability. Manufacturers design welded chains, especially those made from alloy steel, for overhead lifting and heavy-duty applications. Grades like Grade 80 and Grade 100 handle significant tensile strength, making them ideal for demanding tasks. In contrast, carbon chains such as Grade 30, Grade 43, and Grade 70 do not offer the same breaking strength and are not suitable for overhead lifting.
Welded chains provide higher load capacities and breaking strengths than lower-grade carbon chains.
They resist abrasion and corrosion better, making them suitable for tough environments.
Non-welded chains may wear out faster and cannot handle the same level of stress.
The global market for welded chains has grown rapidly. China leads in both production and consumption, accounting for over half of global output. Prices have risen steadily, reflecting increased demand and improvements in manufacturing processes.
Tip: When choosing a chain for industrial or agricultural use, always consider the type of welding, material, and grade. These factors determine the chain's performance and safety in real-world applications.
Welded Steel Chains: Benefits
Strength and Durability
Welded steel chains deliver exceptional strength and durability, making them essential for heavy-duty operations. Engineers design these chains to handle high loads and intense stress. The welding process creates a continuous link, which increases resistance to impact and fatigue. Users in agriculture and construction often rely on these strong and dependable chains for their ability to withstand demanding conditions.
| Benefit | Description |
|---|---|
| Superior strength and durability | Designed for high-load applications, these chains can withstand intense stress and impact. |
| Long-lasting performance | Resistant to wear, fatigue, and environmental damage, ensuring a long operational lifespan. |
| Corrosion and abrasion resistance | Often treated for enhanced protection against rust and other forms of corrosion. |
Scientific studies show that the microstructure of welded steel chains, especially in the heat-affected zone, plays a key role in their performance. Variations in corrosion behavior can occur around the welding line, but modern manufacturing techniques help minimize these effects. The unique welding and heat treatment processes also reduce the likelihood of failure, resulting in lower failure rates compared to alternative chain types. Many users report extended wear life and trouble-free performance, even in abrasive and rough environments.
Abrasion and Weather Resistance
Welded steel chains excel in resisting abrasion and harsh weather. Laboratory tests, such as the ball-cratering method, assess the abrasive wear resistance of welded joints. Results indicate that while welding can affect the wear resistance near the weld center, high-quality welded chains maintain their integrity over time. Heat-treated welded steel chains can provide up to 50% greater wear life in non-abrasive environments. Users can turn the chain over when one side wears down, further extending its service life.
These chains also resist corrosion from rain, snow, and chemicals. Manufacturers often apply protective coatings or use stainless steel to enhance weather resistance. This makes welded steel chains suitable for outdoor use in agriculture, construction, and material handling.
Types and Grades
Welded steel chains come in several types and grades, each designed for specific applications. The grade determines the chain’s strength, wear resistance, and suitability for different tasks.
| Chain Grade | Description | Applications |
|---|---|---|
| Grade 30 | General purpose, economical chain with low tensile strength. | Light construction, agricultural, marine industry. |
| Grade 43 | Stronger than Grade 30, better resistance to wear and tear. | Container securement, logging, farming, towing, marine. |
| Grade 70 | Heat-treated carbon steel, 20% higher load rating than Grade 43. | Truckers, loggers, highway crews for load securement, towing. |
| Grade 80 | High-strength chain, heat-treated alloy, economical for overhead lifting. | Sling component, heavy-duty tow chain. |
| Grade 100 | High-strength chain, 25% stronger than Grade 80. | Overhead lifting, construction, rigging. |
| Grade 120 | Ultra-premium, 50% stronger than Grade 80. | Exceeds Grade 100 standards, overhead lifting. |
Industry standards such as ASME B29.200, ASME B29.16M, and ASME B29.18M define the specifications for welded steel chains. These standards ensure that high-quality welded chains meet strict requirements for design, dimensions, and performance. Selecting the right high-strength chain grade helps users achieve safety and efficiency in their operations.

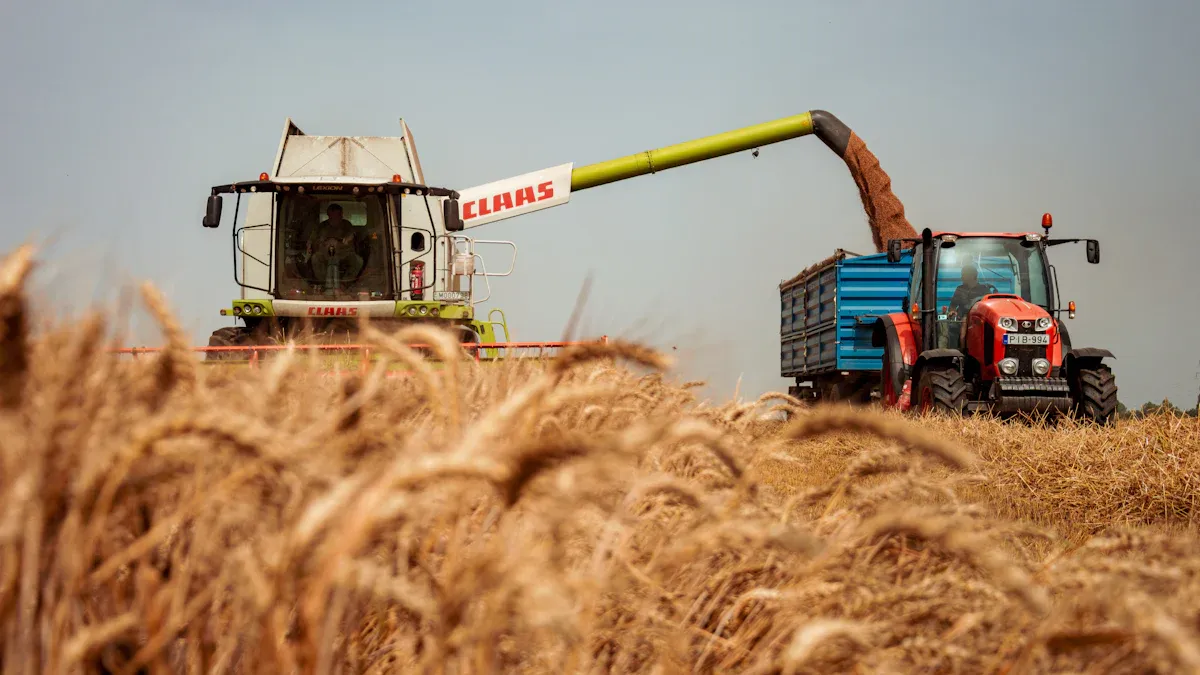

Common Applications for Welded Chains
Welded chain technology plays a vital role in a wide range of industrial applications. These chains support essential operations in agriculture, construction, material handling, forestry, grain conveying, cement, and lumber industries. Each sector relies on the unique properties of welded chain to improve efficiency, safety, and productivity.
Agriculture
Modern agriculture depends on welded chain solutions for reliable performance in demanding environments. Farmers use these chains in equipment such as harvesters, balers, and planters. The shift toward Agriculture 4.0 has increased the need for advanced machinery with greater working widths and higher precision. Welded chain components help agricultural machines operate efficiently, even under heavy loads and continuous use. This technology allows farmers to optimize resource use, reduce downtime, and increase profitability. The durability and operational reliability of welded chain systems make them a cost-effective choice for agricultural machinery manufacturers and end users.
Welded chain assemblies in agricultural equipment ensure consistent operation, even during peak harvest seasons. This reliability supports higher yields and better resource management.
Construction
Construction sites present harsh conditions that demand robust solutions. Welded chain products serve as critical components in lifting, hoisting, and securing heavy materials. Workers use these chains in cranes, hoists, and rigging systems to move steel beams, concrete blocks, and other building materials. The high strength and abrasion resistance of welded chain make it ideal for repetitive lifting tasks and exposure to dust, debris, and weather. Construction professionals trust welded chain for its ability to maintain structural integrity and safety standards on job sites.
Welded chain slings provide secure lifting for oversized loads.
Chains anchor scaffolding and support temporary structures.
Conveyor chains transport bulk materials such as gravel and sand across construction zones.
Material Handling
Material handling operations rely on conveyor chains to move products efficiently through warehouses, factories, and distribution centers. Welded chain designs support automated conveyor systems, which streamline the movement of goods and reduce manual labor. These chains handle a variety of loads, from lightweight packages to heavy pallets. Their robust construction ensures minimal wear, even in high-speed or continuous-use environments. Industrial applications benefit from the reliability and low maintenance requirements of welded chain conveyor systems.
| Application Area | Role of Welded Chain | Benefit |
|---|---|---|
| Warehousing | Conveyor chains for sorting lines | Faster order fulfillment |
| Manufacturing | Bulk material handling conveyors | Improved process efficiency |
| Distribution Centers | Automated conveyor systems | Reduced labor costs |
Forestry and Grain Conveying
Forestry and grain conveying operations require heavy-duty welded chain solutions. In forestry, these chains power log conveyors, debarkers, and sawmill equipment. Welded chain ensures smooth and synchronized motion, which helps maintain consistent log positioning and efficient processing. In grain handling, welded steel drag chains operate under demanding conditions, moving large volumes of grain with minimal downtime.
Heavy-duty welded chain withstands harsh environments and reduces maintenance costs.
Chains manage significant loads while maintaining operational efficiency.
Conveyor chains in grain elevators and silos support bulk material handling and storage.
Welded chain systems in forestry and grain conveying deliver durability, longevity, and enhanced efficiency, making them indispensable for uninterrupted operations.
Cement and Lumber Industries
Cement and lumber industries depend on welded chain for bulk material handling and processing. In cement plants, conveyor chains transport raw materials such as limestone, clay, and aggregates to crushers and kilns. These chains resist abrasion from rough materials and exposure to dust and chemicals. In lumber mills, welded chain drives saws, conveyors, and sorting lines, ensuring precise movement of timber and finished products.
Conveyor chains in cement plants support continuous production and reduce equipment downtime.
Lumber mills use welded chain to automate log handling and improve throughput.
Industrial applications in these sectors benefit from the strength and reliability of welded chain systems.
Welded chain technology remains essential for a broad spectrum of industrial applications. Its versatility, strength, and resistance to harsh environments make it the preferred choice for industries that demand reliable performance and long service life.

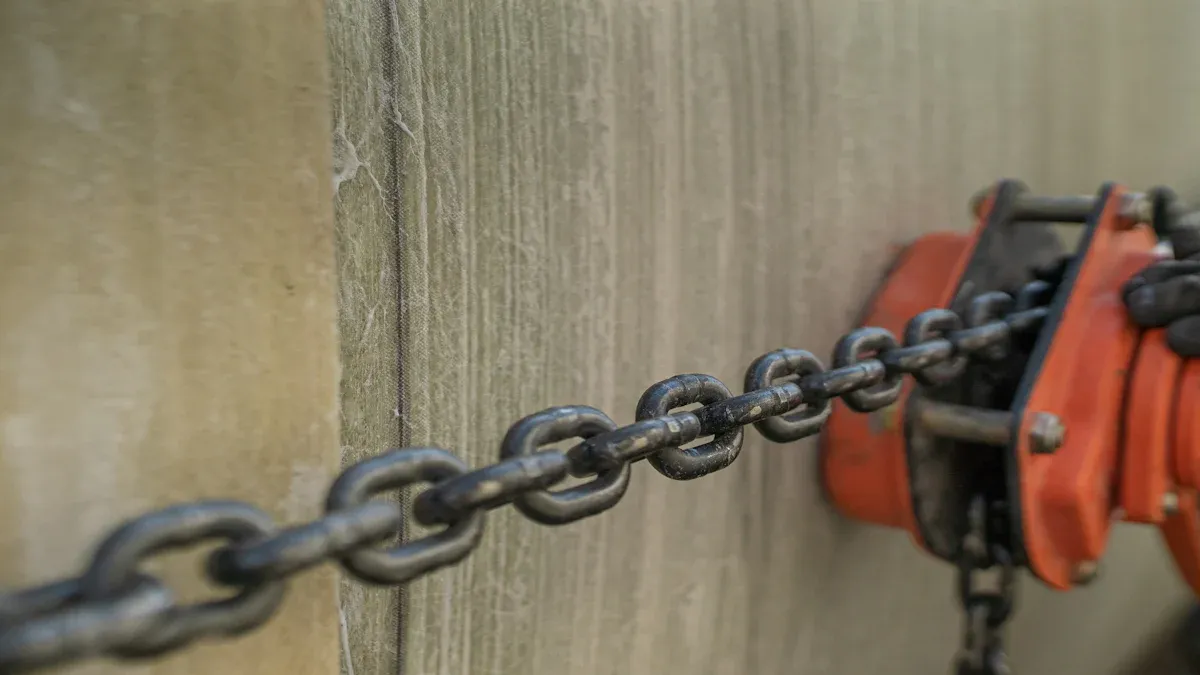

Welded Chain Slings and Practical Use
Welded Chain Slings
Welded chain slings play a critical role in lifting and anchoring big weights in industrial environments. Workers use these slings for moving heavy loads, rigging, and securing materials. Each sling type offers unique advantages for different lifting needs. The table below outlines the main types of welded chain slings:
| Type of Chain Sling | Description |
|---|---|
| Single Leg | A basic configuration for lifting loads with one chain. |
| Double Leg | Utilizes two chains for added stability and load distribution. |
| Triple Leg | Designed for more complex lifting needs, using three chains. |
| Quad Leg | Offers maximum support with four chains for heavy loads. |
| Endless Basket Sling | A continuous loop design for versatile lifting applications. |
| Double Endless Basket Sling | Similar to the endless basket but with added support for heavier loads. |
| Adjustable Chain Sling | Features mechanisms for length adjustment, enhancing versatility. |
| Chain Sling Saddle Ring | Provides quick adjustments and is lighter and more economical than traditional adjustable slings. |
Industry standards such as those from the National Association of Chain Manufacturers, ANSI/ASME B30.9, and DOL-OSHA regulations govern the use of welded chain slings. These standards help ensure safety and reliability during lifting operations.
Choosing the Right Chain
Selecting the correct welded chain slings for a job requires careful consideration. The following criteria guide the selection process:
| Criteria | Details |
|---|---|
| Working Load Limit | The maximum load that shall be applied in direct tension to an undamaged straight length of chain. |
| Material Properties | The selection of the base steel must meet specific criteria for carbon, phosphorus, and sulfur. |
| Alloying Elements | Nickel must be present in an alloying amount, and at least one of chromium or molybdenum must also be present. |
| Material Type | The material shall be a 300 series austenitic stainless steel. |
Proper selection ensures the sling can handle heavy loads safely and efficiently. Always match the sling type and grade to the specific lifting application.
Maintenance Tips
Routine maintenance and inspection are essential for welded chain slings. Regular inspection helps identify wear, elongation, corrosion, and defective welds. Lubrication reduces friction and extends the life of both the sling and chain. Tension adjustment prevents excessive stress. Workers should consider the environment, as harsh conditions can accelerate wear.
Regular chain sling inspection and maintenance improve safety, prevent costly downtime, and extend equipment longevity.
Neglecting maintenance can lead to fatigue failure, corrosive wear, and even ductile fracture. Ensuring safety through proper chain inspection and care protects both workers and equipment.
Welded chains prove their value in agriculture, construction, and many other industries. Their adaptability allows use in harsh environments, from lifting heavy beams to securing livestock enclosures.
Steel chains support safe, efficient operations in both fields and worksites.
Welded wire mesh protects crops and animals, showing versatility.
Selecting the right chain depends on several factors:
| Factor | Description |
|---|---|
| Load Weight | Heavier loads require higher-grade chains. |
| Environmental Conditions | Corrosive settings need stainless or galvanized steel. |
| Frequency of Use | Frequent use calls for durable, fatigue-resistant chains. |
| Safety | Proper safety margins prevent breakage. |
Proper maintenance extends service life and ensures safety. For dependable welded chains, SHINING delivers quality and expertise every time.
FAQ
What makes welded chains suitable for outdoor use?
Welded chains resist corrosion and abrasion. Manufacturers often use stainless steel or apply protective coatings. These features help welded chains perform well in rain, snow, and harsh weather.
How does chain grade affect performance?
Chain grade determines strength and durability. Higher grades, such as Grade 80 or Grade 100, support heavier loads and offer better resistance to wear. Lower grades suit lighter tasks and general use.
Can welded chains be repaired if damaged?
Technicians can repair minor damage by replacing individual links. Severe damage or compromised welds require chain replacement. Regular inspection helps prevent unexpected failures.
What safety checks should workers perform before using welded chain slings?
Workers should inspect for wear, elongation, corrosion, and defective welds. They must verify the working load limit and ensure proper lubrication. Routine checks improve safety and extend chain life.
Are welded chains compatible with automated conveyor systems?
Engineers design welded chains for automated conveyor systems. These chains handle high-speed operations and heavy loads. Their robust construction ensures reliable performance in industrial settings.
